Custom Designed RF Front Ends for Microwave Tuners and Receivers
RFE’s high-performance units provide small package size, fast LO tuning and superior dynamic range with built-in RF and IF attenuators, internal/external selectable reference, and selectable IF bandwidths. Our modular designs can be easily modified for your specific requirements. Many configurations and frequency bands can incorporate the same proven architectures.
Features:
- 0.1 to 60 GHz RF Inputs
- Selectable IF’s with up to 2 GHZ Output Bandwidth
- Preselect Filtering, IF Digital Attenuation
- Lowest Noise Figures, Highest Dynamic Ranges
- Sub 1 us LO Tuning
- Low Integrated Phase Noise
- Multi-Channel Configurations
V-Band Downconverter
Specifications and Ratings for RFE-2017019
K-Band Downconverter
Specifications and Ratings for RFE-2017020
4 Channel Downconverter
Specifications and Ratings for RFE-2017900

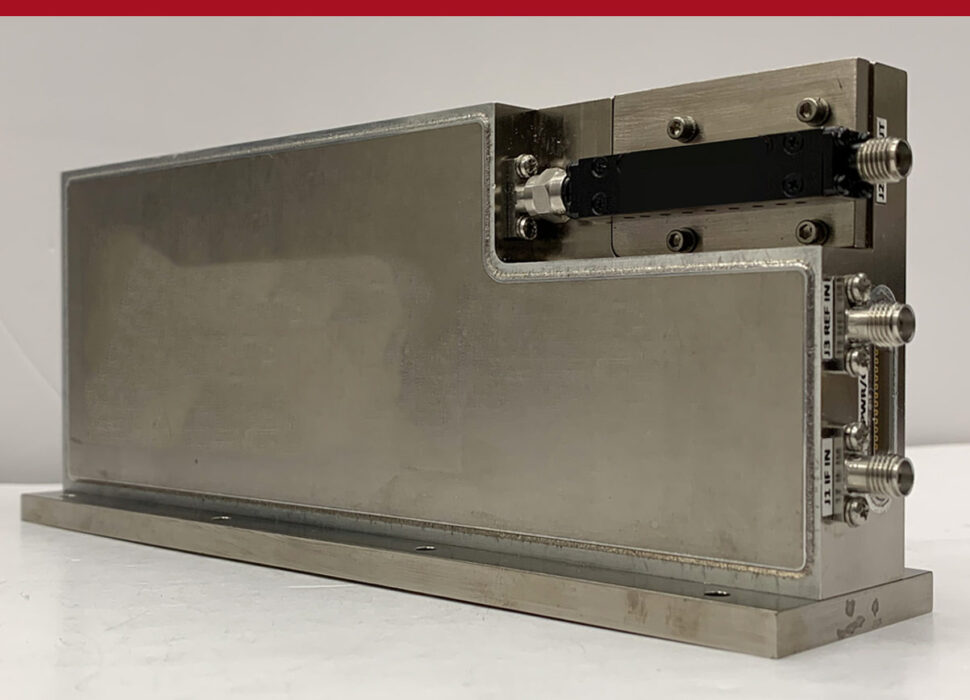

NEW! SATCOM Ka-Band Block Upconverter
Specifications and Ratings for RFE-2020002
NEW! SATCOM K-Band Block Downconverter
Specifications and Ratings for RFE-2020003
