RFE Synthesizers: Low Cost, Multi-Octave Microwave Source
The RFE Synthesizer provides a reliable, fast tuning, multi-octave microwave source with the smallest possible footprint and least weight. With an RFE Synthesizer you can cover the entire 2-20 GHz spectrum on one SMA output (multi-ports optional).

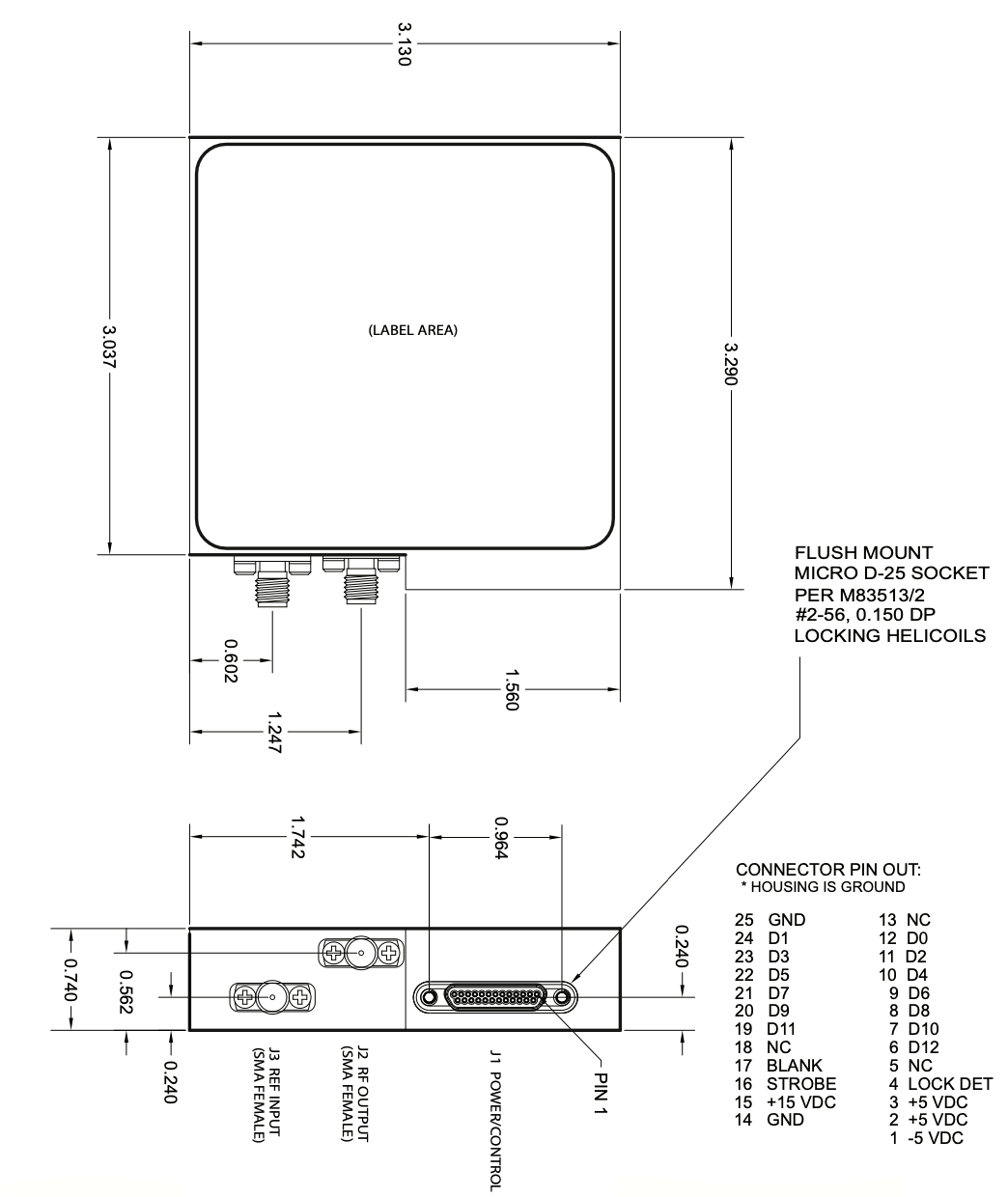

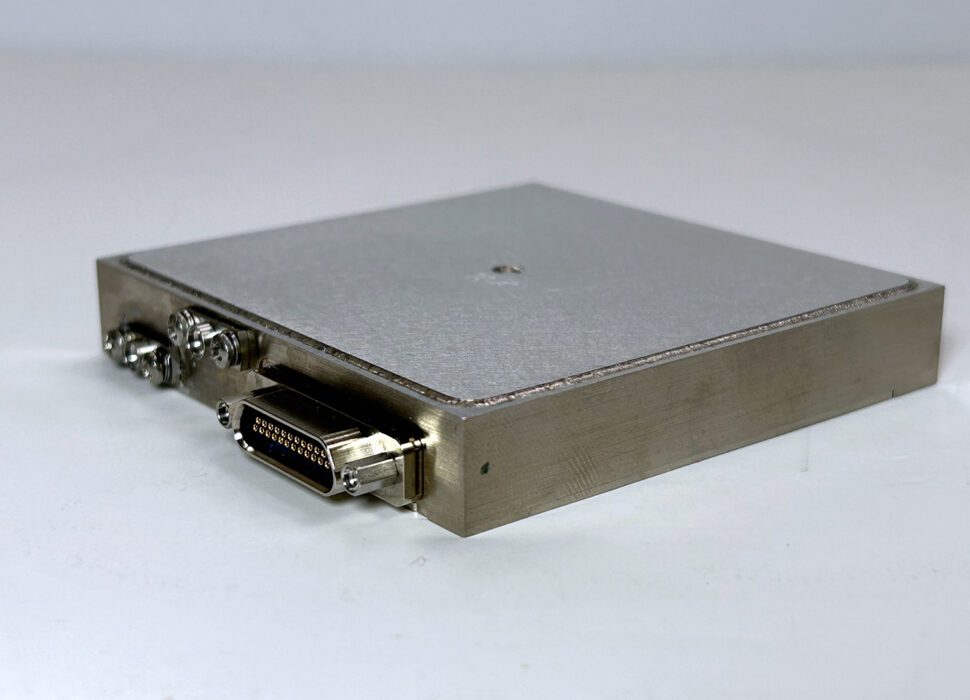

Broadband Fast Tuning Miniature Synthesizers
Synthesizer Features:
- Small Package 3.0” x 3.0” x 0.7”
- Low Cost Broadband Synthesizer
- <50 us tuning Speed Option
- 1 – 20 GHz Frequency Output
Ku Band Synthesizers
Synthesizer Features:
- Small 3.8” x 3.5” x 0.45” Package
- Frequency Range (11 – 15 GHz)
- < 50 usec Tuning Speed Option
- -60 dBc Spurious

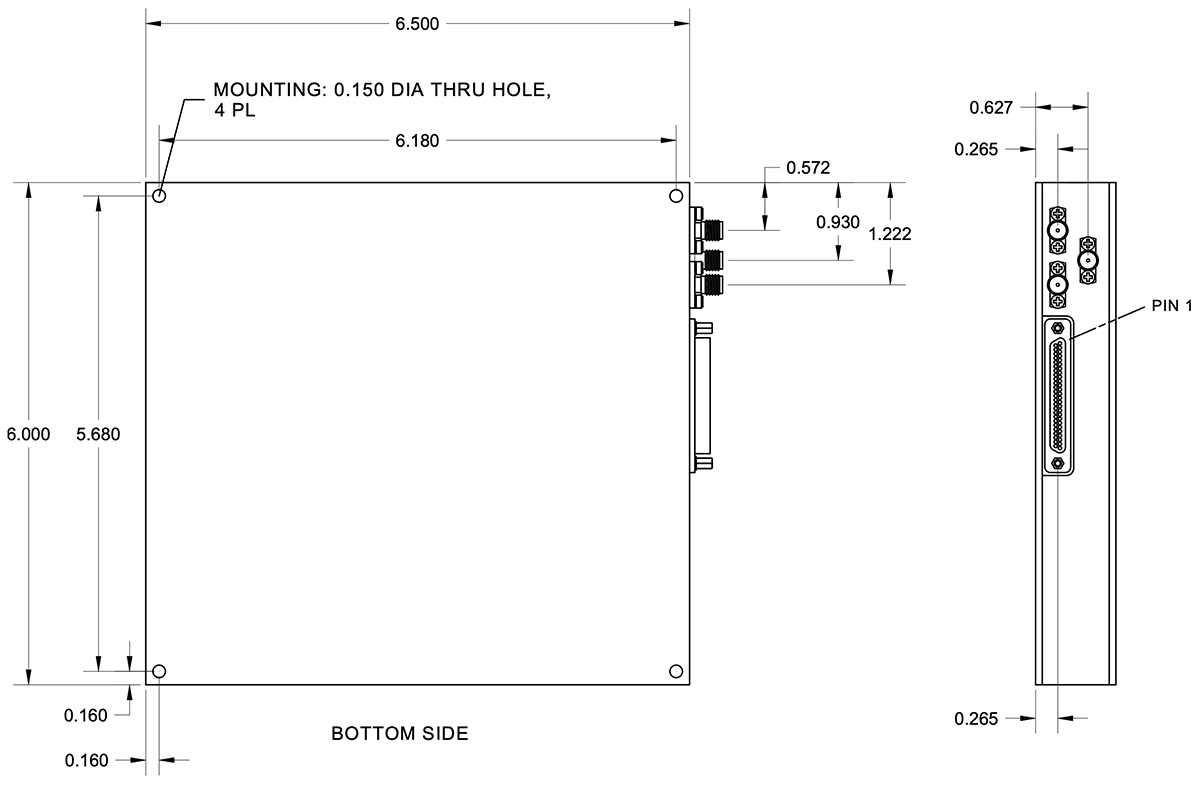

Direct Synthesizer
Synthesizer Features:
- High-Speed Wideband Direct Synthesizer
- .1 – 20GHz
- 300nsec Tuning Speed
- DDS Based Tuning
- Phase Coherent Option
Multi-Loop Fast Tuning Synthesizer
< 50 uS Phase Settling Time +/- 2.0 deg- Low Phase Noise: -110 dBc/Hz @100 kHz offset, 12.5 GHz
- 1 – 20 GHz Output
- Up to 20% Bandwidth
Direct Digital Up-Convert Synthesizer
Synthesizer Features:
- Synthesizer with DDS Capabilities up to 26 GHz
- Up to 10% DDS Bandwidth for FM Chirp or I/Q Modulation
- Up to 25% Synthesizer Bandwidth
- Very Low Phase Noise
- Phase Adjustable Output

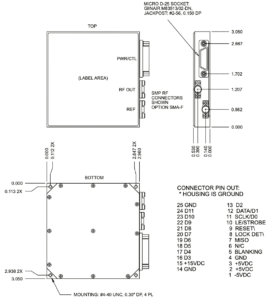

Fast Tuning Broadband Synthesizer
Synthesizer Features:
- 2 – 18GHz Output
- 200MHz FM Modulation
- < 50 uS Synthesized Tuning Speed
- 1MHz Resolution
- Small 4″x4″x1″ Package
Single Loop Synthesizer / PLO
Synthesizer Features:
- 100 MHz to 26 GHz Output
- Small Package: 1.9″x1.9″x0.45″
- < 50 uS Tuning Speed Option
- < 60 dBc Spurious
- Internal Reference Option
